Why Do All HVLS Fans Choose Permanent Magnet Synchronous Motors?

In the field of industrial ventilation, whether we are talking about HVLS fans, industrial large fans, large diameter fans or high volume low speed fans, their core power systems almost all adopt permanent magnet synchronous motors (PMSM). With the advantages of high efficiency, energy saving, stable operation and long service life, this type of motor has become the standard configuration for large industrial ventilation equipment. This article will disassemble the structure and working principle of the 500W outer rotor PMSM specially used for industrial large fans in detail, helping you deeply understand this core component.

Core Structure Disassembly of Permanent Magnet Synchronous Motor

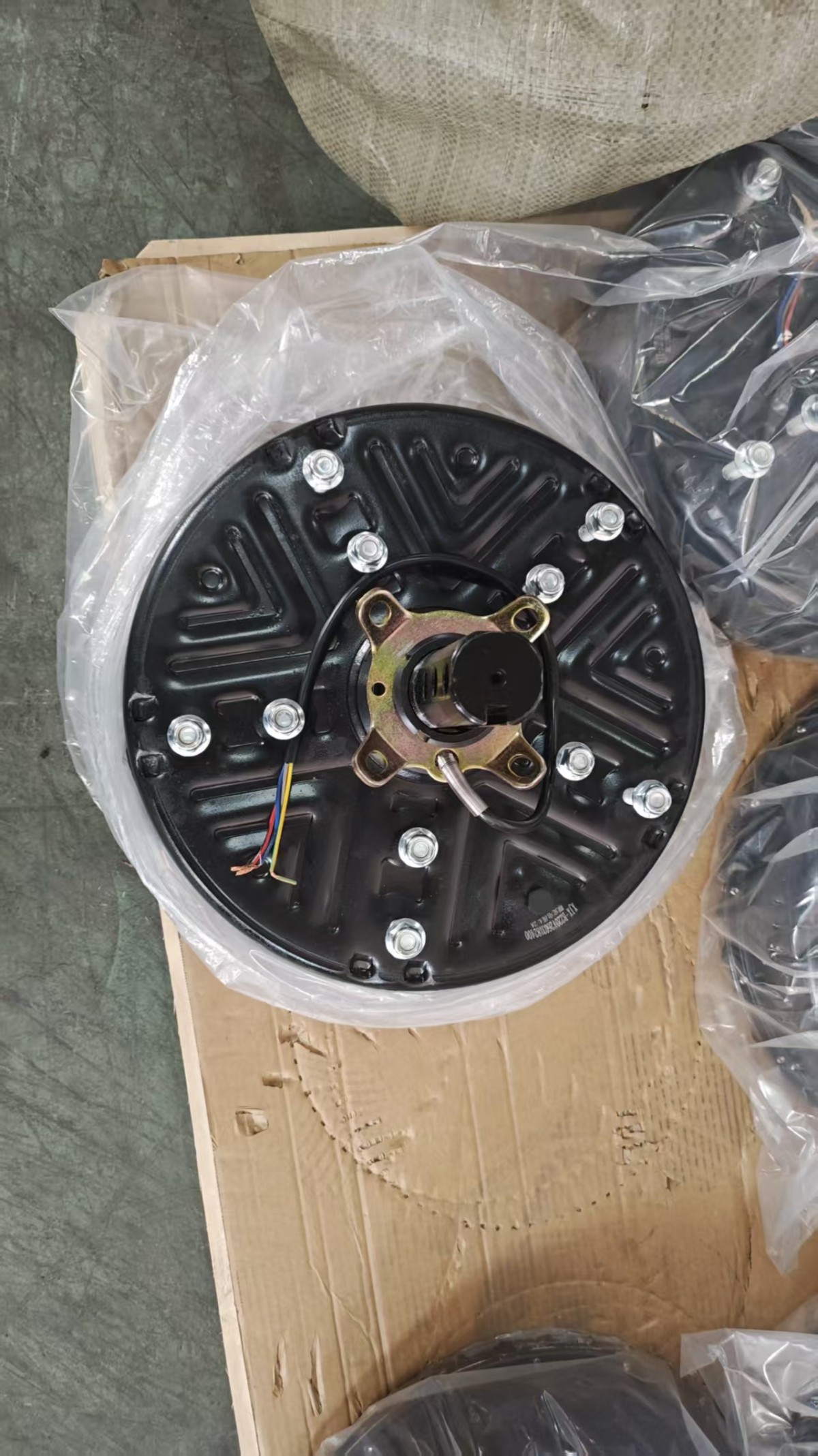

A permanent magnet synchronous motor is mainly composed of two core components: stator and rotor. We will take the self-assembled 500W motor for industrial large fans as an example for explanation:

Stator: The Stationary Magnetic Field Generator

The stator is the stationary part of the motor, mainly composed of an iron core laminated with silicon steel sheets and copper wire windings wound around the iron core. The stator is connected to the motor shaft through bearings and remains stationary during motor operation. Its core function is to generate a rotating magnetic field after alternating current is applied, providing the power source for motor operation.

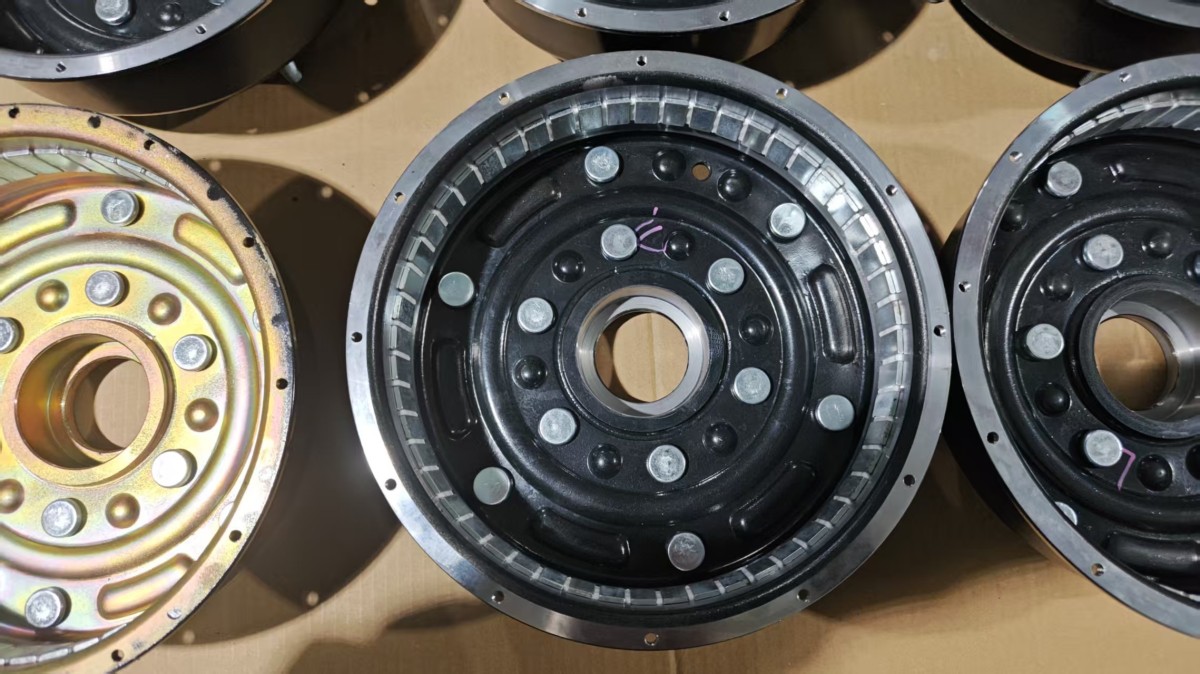

Rotor: The Power Output Component Rotating Synchronously with the Magnetic Field

The rotor is the rotating part of the motor. Industrial large fans adopt an outer rotor structure, that is, the rotor is sleeved outside the stator. High-performance permanent magnets (magnetic tiles) are evenly pasted on the inner wall of the rotor, and these permanent magnets can generate a constant inherent magnetic field. The outer rotor structure is particularly suitable for the application requirements of HVLS fans. It can directly drive the fan blades to rotate, eliminating the need for complex reduction mechanisms and greatly improving transmission efficiency and system reliability.

Working Principle of Permanent Magnet Synchronous Motor

The operation of a permanent magnet synchronous motor is based on the interaction principle between magnetic fields. The specific process is as follows:

1. Three-phase alternating current is passed into the three-phase windings of the stator through 4 cables (3 phase wires + 1 ground wire)

2. Under the action of three-phase alternating current, the stator windings generate a magnetic field rotating at synchronous speed in the air gap between the stator and the rotor

3. The constant magnetic field generated by the permanent magnets on the rotor interacts with the rotating magnetic field of the stator to produce electromagnetic torque

4. The electromagnetic torque pulls the rotor to rotate synchronously at the same speed as the stator's rotating magnetic field

5. As long as three-phase alternating current is continuously supplied, the rotating magnetic field of the stator will continue to exist, driving the rotor to drive the fan blades to operate uninterruptedly

Unique Advantages of Outer Rotor PMSM in HVLS Fans

1. Ultra-high Energy Efficiency: Permanent magnets do not require excitation current, and the motor efficiency can reach more than 90%, saving 30%-50% energy compared with traditional asynchronous motors

2. Low Speed and High Torque: It can output large torque at low speed, perfectly matching the high volume low speed operation characteristics of industrial large fans

3. Stable Operation: The synchronous speed is constant and not affected by load fluctuations, making the fan run more smoothly and with lower noise

4. Simple and Reliable Structure: The outer rotor is directly driven without a gear reduction box, reducing wearing parts and maintenance costs

5. Long Service Life: Using high-quality bearings and high-temperature resistant insulating materials, the designed service life of the motor can reach more than 10 years

Conclusion

As the core technology of industrial large fans, the outer rotor permanent magnet synchronous motor directly determines the performance, energy efficiency and service life of the fan. Our self-developed and produced 500W permanent magnet synchronous motor has passed strict quality inspection and long-term actual operation verification, and can work stably and reliably in various harsh industrial environments, providing efficient, energy-saving and comfortable ventilation solutions for your workshops, warehouses, gymnasiums and other large spaces.
