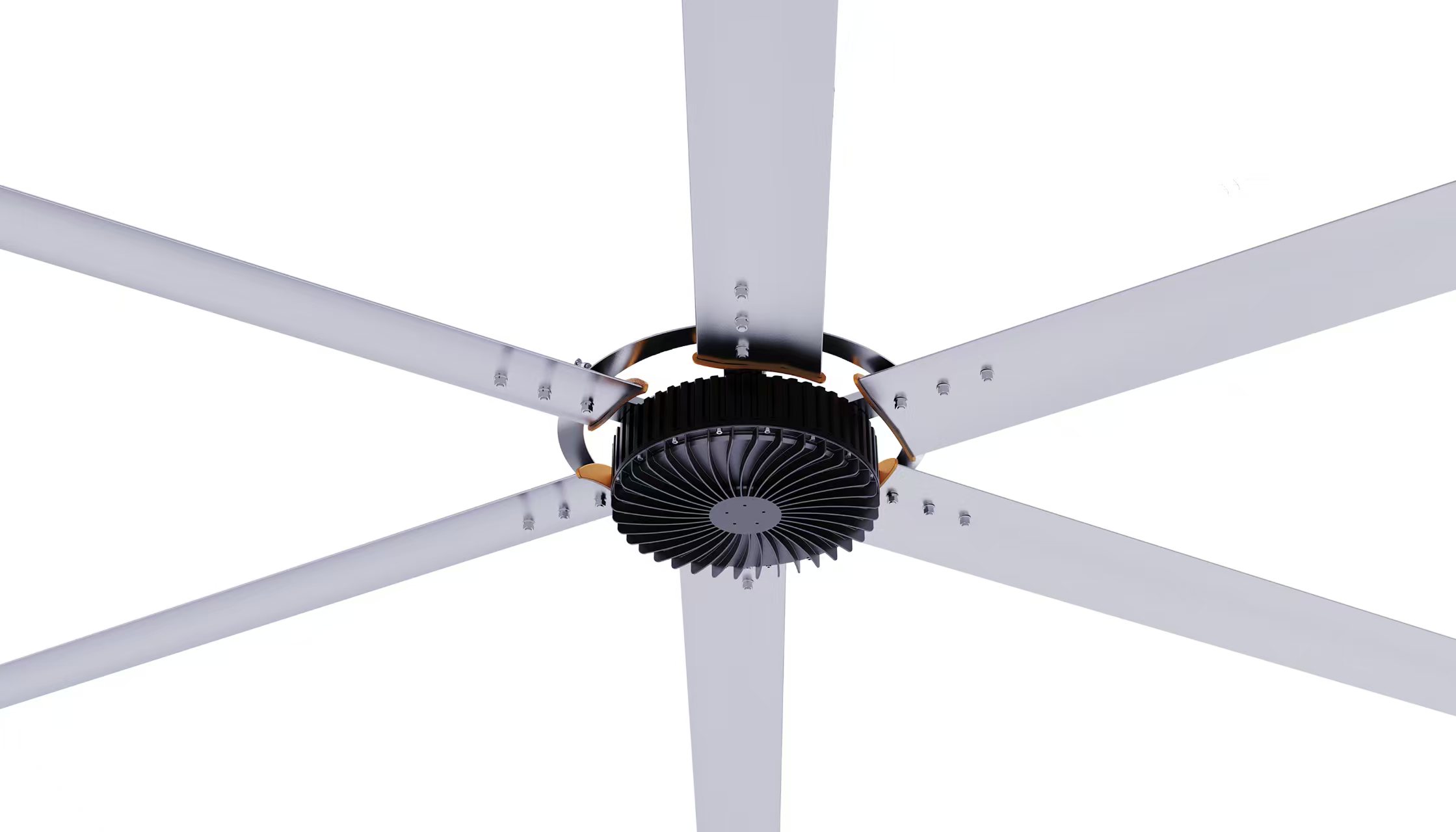

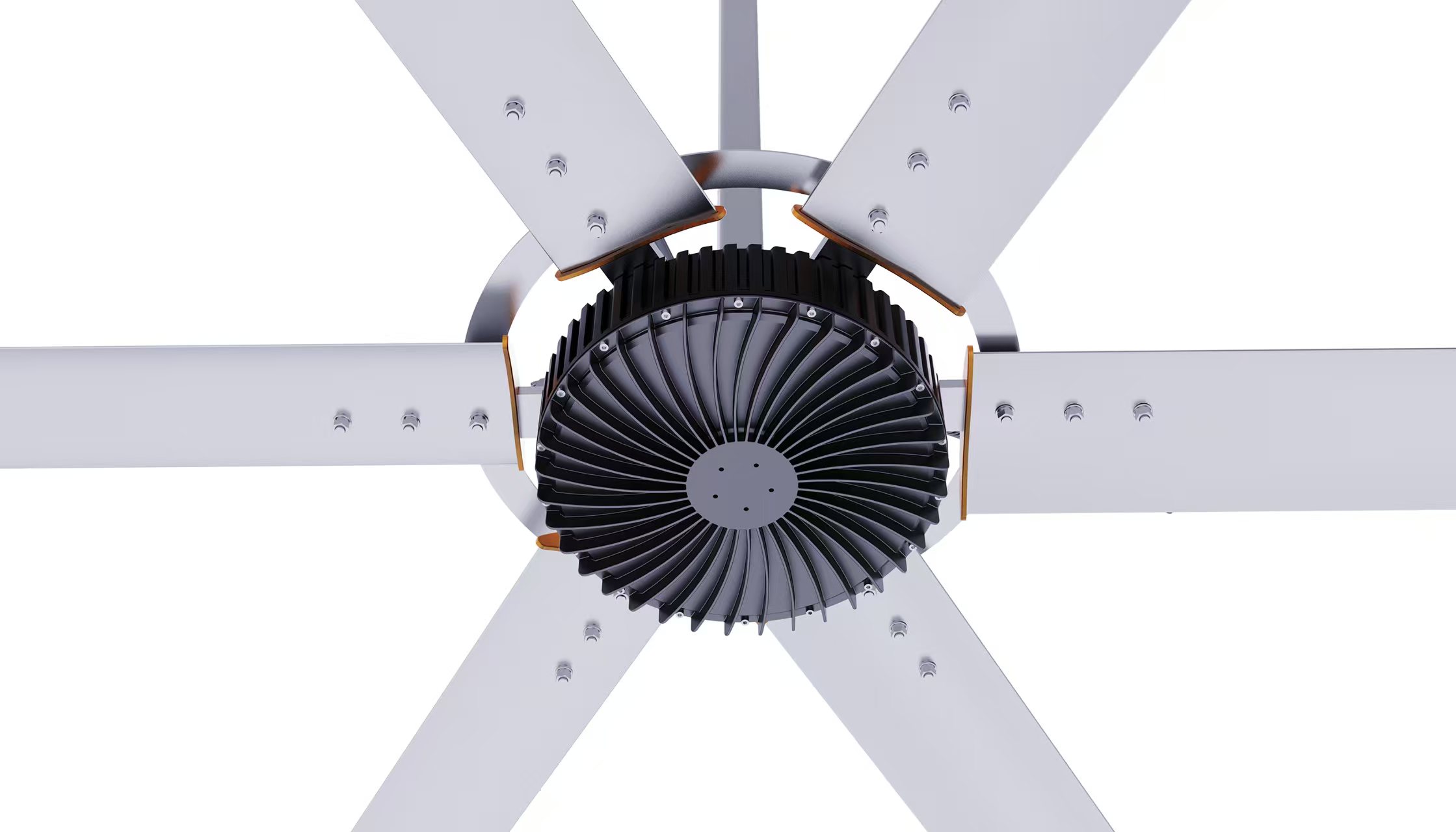

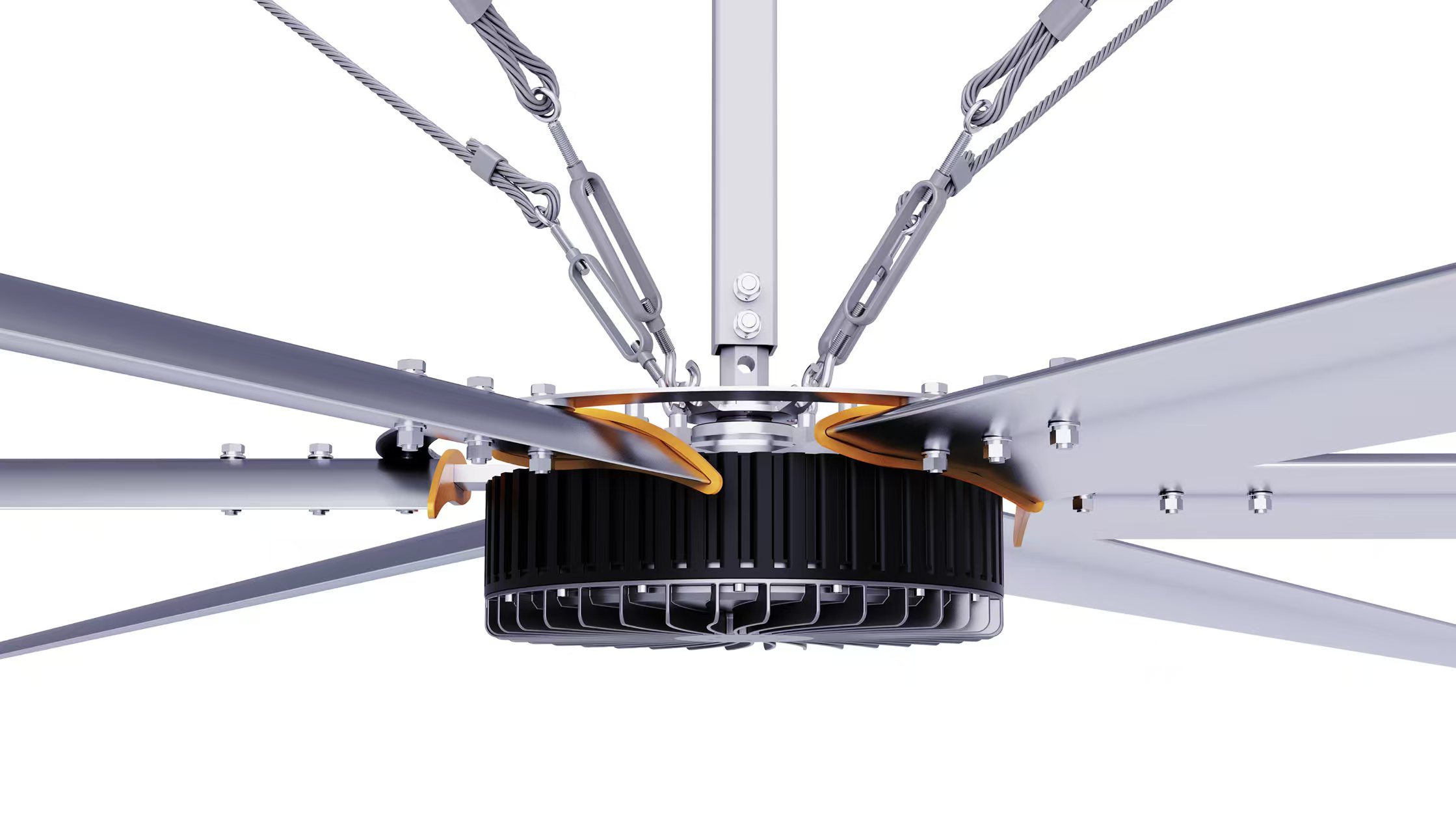

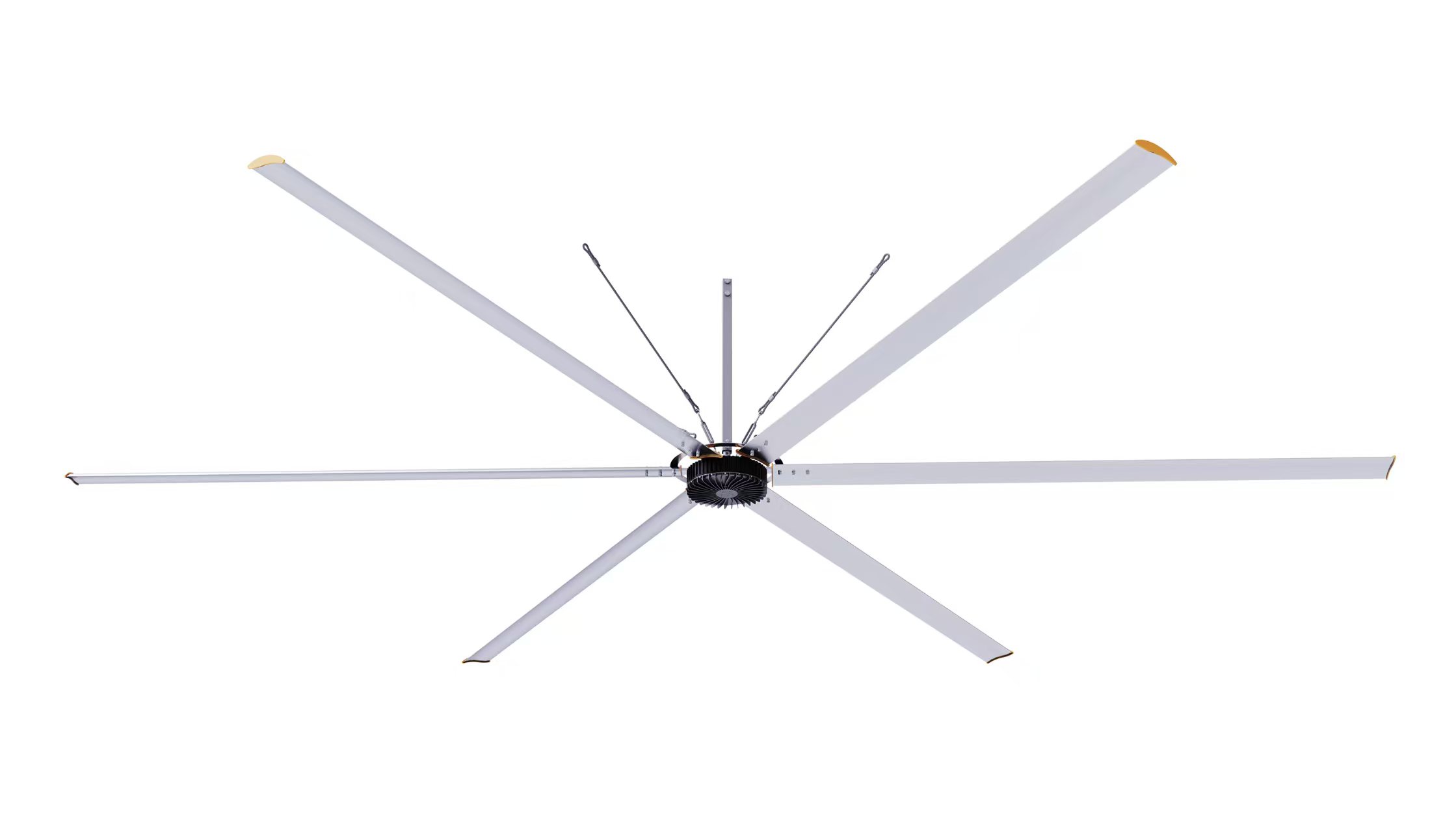

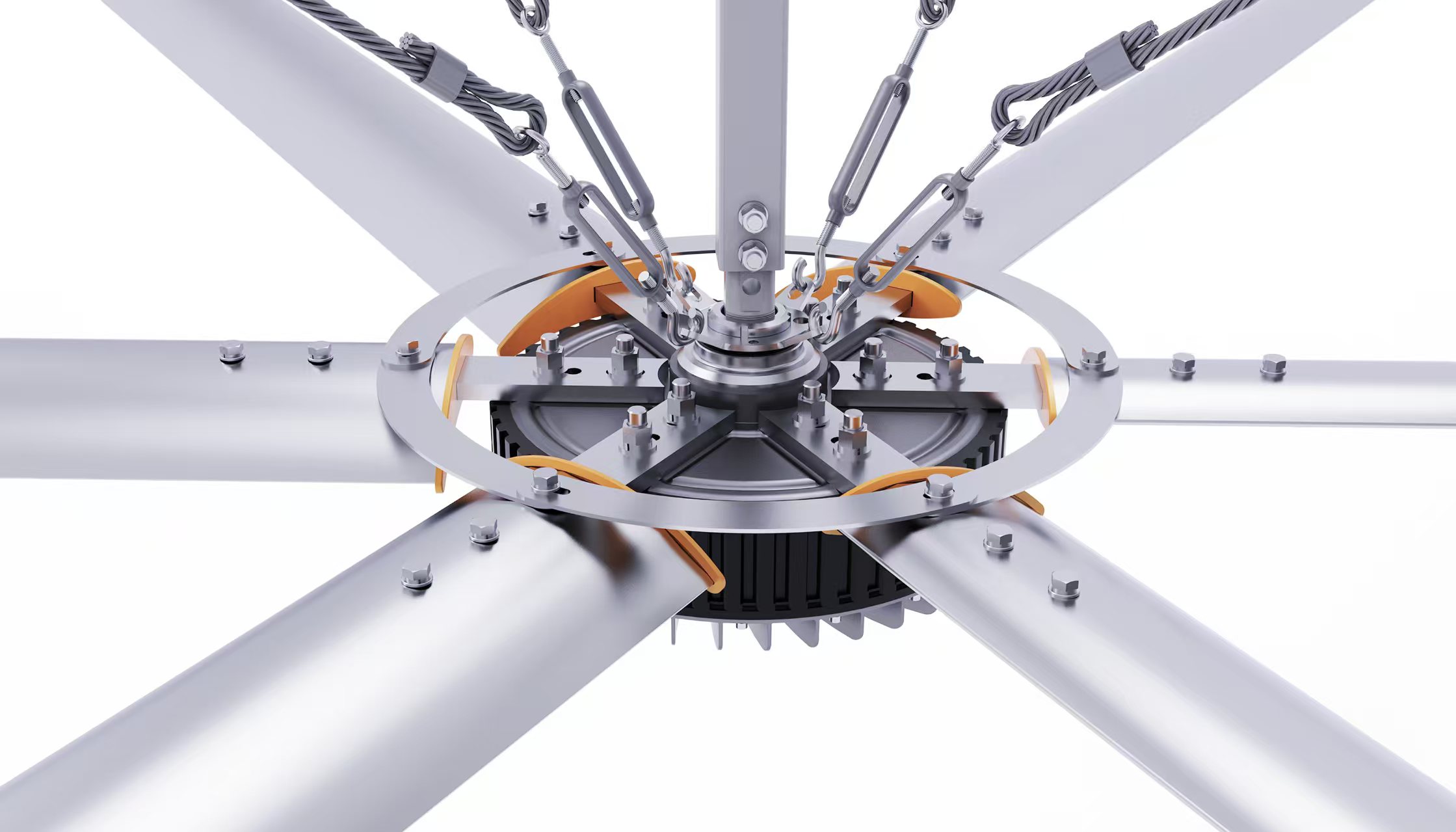

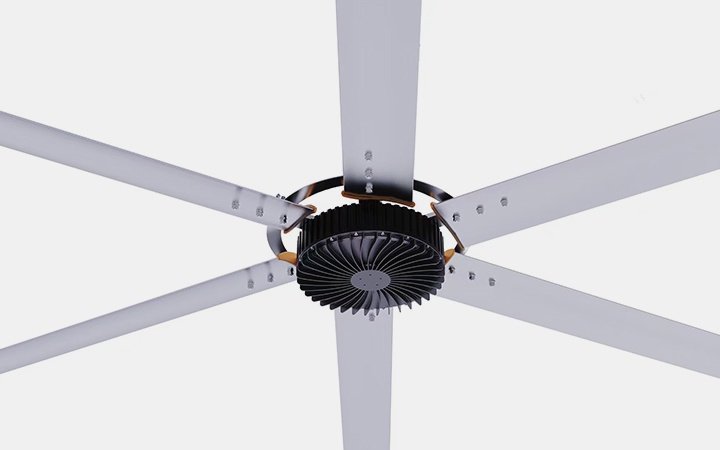

FT6-24 HVLS Fan

Name: FT6-24 HVLS Fan
SKU: 0

Permanent Magnet Synchronous Brushless Industrial HVLS (High Volume Low Speed) Ceiling Fans are large-scale ventilation and cooling equipment specially designed for high-ceiling industrial and commercial spaces. Powered by a Permanent Magnet Synchronous Motor (PMSM) as the core drive and paired with aerodynamically optimized large-diameter fan blades, the fans operate at low speeds to move massive volumes of air and form full-space circulation, delivering multiple functions including natural ventilation, sensible cooling, dehumidification and odor removal. They are widely used in various high-ceiling environments such as factories, warehouses, logistics centers, gymnasiums, exhibition halls, waiting lounges and livestock farms.

Email : roger@sino-group.com

WhatsApp : +86 16678151397

Product Details

Applicable Fan Diameter

Model/Status

Number of Pole Pairs

Rated Power (kW)

Voltage (V)

Current (A)

Motor Weight (kg)

Motor Dimensions (Height mm * Outer Diameter mm)

Back EMF Limit at 60 RPM (V)

Torque (N·m)

Q-axis Inductance (mH)

D-axis Inductance (mH)

Applicable Pole Number

Protection Class

Energy Efficiency Class

Noise (dB)

Applicable Fan Blade Count

24ft (7.3m)

Sino-375-55H

1.5

380V

2.9A

293*407

295

203

—

50~60

IP65~IP68

Class 1

≤40

5~6

24ft (7.3m)

Sino-375-55H

1.5

220V

4.2A

293*407

205

208

—

50~60

IP65~IP68

Class 1

≤40

5~6

24ft (7.3m)

Sino-375-50H

1.5

380V

2.6A

293*407

285

175

112

50~60

IP65~IP68

Class 1

≤40

5~6

24ft (7.3m)

Sino-375-50H

1.5

220V

4.3A

293*407

185

180

50~60

IP65~IP68

Class 1

≤40

5~6

20ft (6.1m)

Sino-375-40H

1.2

380V

2.7A

293*407

220

145

50~65

IP65~IP68

Class 1

≤37

5~6

20ft (6.1m)

Sino-375-40H

1.2

220V

3.5A

293*407

180

147

50~65

IP65~IP68

Class 1

≤37

5~6

4.9m~5.5m

Sino-260-60H

0.9

220V

2.6A

275*290

111

60~100

IP65~IP68

Class 1

≤36

5~6

4.2m~5m

Sino-260-45H

0.75

220V

2.5A

18.5

275*290

60~100

IP65~IP68

Class 1

≤36

5~6

3.6m~4m

Sino-215-40H

0.5

220V

2.0A

9.5

189*243

80~150

IP65~IP68

Class 1

≤35

5~6

2.4~3.6m

Sino-215-24H

0.3

220V

1.9A

8.5

189*243

80~150

IP65~IP68

Class 1

≤35

5~6

Item Name	Quantity	Item Name	Quantity
Controller	1 unit	Blade Guard Plate	6 pcs
Permanent Magnet Motor	1 unit	Turnbuckle (Hook Bolt)	4 pcs
Motor Protection Sleeve	1 pc	Wire Rope Clip	As required
Suspension Rod	1 pc	Blade Screw	18 pcs
Steel Wire Rope (5-pack 6-strand)	1 bundle	Lower Suspension Rod Screw	2 sets (anti-slip)
Power Cable	1 bundle	Upper Suspension Rod Screw (2 thick, 2 thin)	4 sets (anti-slip)
Hanging Component	2 sets (4 pcs)	Short Hanging Plate Clamp Screw	4 standard, 2 anti-slip
Fan Blade	6 pcs
Yellow Fan Tail Wing	6 pcs
Mounting Strip	6 pcs

Features

Simple and reliable structure, requiring minimal daily maintenance, ensuring worry-free and effortless long-term use.
Operating at a low speed of 50-200 RPM, it propels a large volume of air, creating a gentle and natural continuous airflow.
Mounted via sturdy rods/mounts, suitable for large, open spaces with a ceiling height of 4 meters or more.
A single unit can effectively cover an area of 600-1200㎡ or even larger, significantly reducing equipment investment.

High efficiency and energy saving

High energy efficiency
Great energy saving
High efficiency under all working condition

Large starting torque

Sufficient starting torque
High load adaptability
High startup efficiency

Good low-speed performance

Stable operation at low speed
Large torque output
Precisely adapted to different scenarios

Low temperature rise and low noise

Less energy loss
low operating temperature
Runs quieter

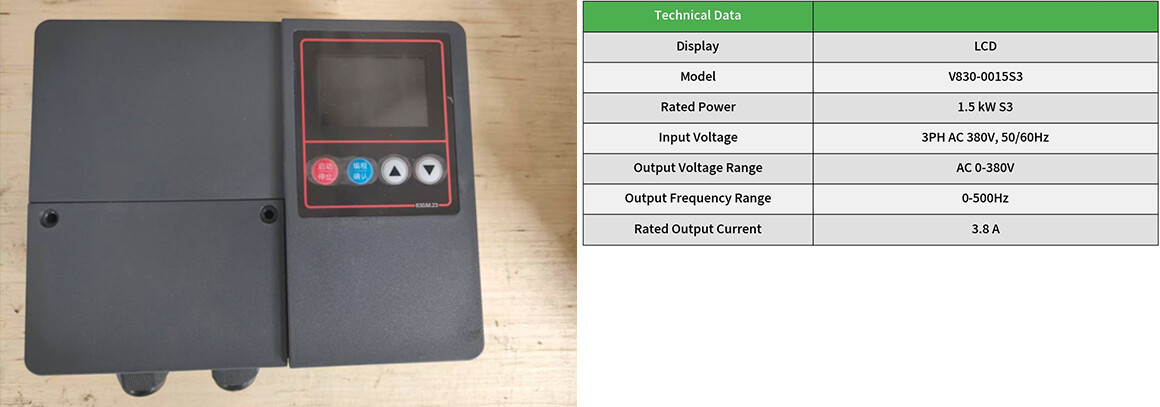

Controller

Applications

1. Workshops

- Optimize air circulation, prevent heat accumulation, and improve workers' productivity.

- Reduce ambient temperature and enhance work comfort.

- Suitable for small and medium-sized industrial spaces; avoids space waste caused by conventional large-diameter fans.

2. Logistics Areas

- Ensure stable air circulation to prevent moisture or heat damage to goods.

- Maintain a stable inventory environment and ensure the safety of stored goods.

- High energy efficiency reduces long-term operational costs.

3. Retail Spaces

- Deliver uniform and comfortable airflow to enhance customers' shopping experience.

- Minimize temperature fluctuations and reduce energy consumption of the HVAC system.

- Adapt to small and medium-sized commercial spaces to create a pleasant shopping environment.

4. Restaurants & Outdoor Patios

- Operate ultra-quietly without disturbing the dining environment.

- Provide efficient ventilation and cooling to improve comfort in outdoor/semi-outdoor areas.

- Energy-efficient design reduces operational costs.

5. Medium Size Commercial & Industrial Spaces

- Specifically designed for scenarios where conventional large-diameter HVLS fans are not applicable.

- Compact and lightweight structure, suitable for spaces with ceiling heights from 3m to 8m.

- High energy efficiency and low noise balance ventilation needs with operational costs.
